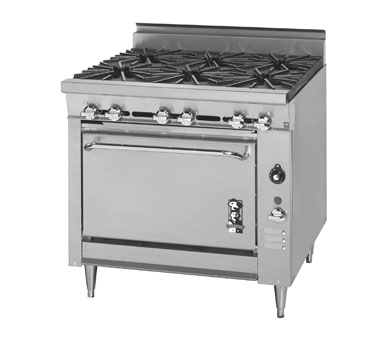

The Montague V136-5 Gas Range works in tandem with its convection oven base to provide you with a versatile cooking experience!
The Montague V136-5 Gas Range is not your ordinary heavy-duty range. It features an ergonomic convection oven base – giving you two highly effective kitchen equipment in one unit. It has economically efficient dimensions of 36 inches (height) x 36 inches (width) x 37.25 inches (depth). It weighs 560 pounds. The standard construction of the Montague V136-5 Gas Range includes a satin finish stainless steel front and exterior bottom with a 3-inch deep front rail. Other surfaces are painted black with a durable and heat resistant electrolytic zinc undercoating. The standard 4-inch rear flue riser is made of stainless steel for effectiveness and easy cleaning. This massive comes with 6-inch adjustable stainless steel legs for strong support, and 1-1/4 NPT front gas manifold with ½ union on each end.
The range top for the Montague V136-5 Gas Range features three (3) 12 inches (width) and 31 inches (depth) open burner tops. It has heavily ribbed cast iron and surface-ground top grates that promote even heat distribution during cooking. Two large diameter lift-off star burners with raised ports pack 30,000 BTU/hour of heating power. A reliable, automatic standing pilot ignition ensures safe and consistent heating. For convenience and sanitary purposes, a drip pan is positioned under the open burners.
The Montague V136-5 Gas Range’s convection oven base features a 26-5/8 inches (width) x 22-1/4 inches (depth) x 15 inches (height) cooking compartment. It has a muffled, indirect-fire design with blower for quick yet perfectly balanced cooking. The unit is fully furnished with five-position adjustable nickel-plated rack supports with standard three (3) racks. Its heavy-duty, no-spring, counterweighted oven door and interior panels are lined with porcelain for durability and easy cleaning. The thermostat, which is mounted in an insulated cool zone, adjusts temperatures from low to 500 degrees Fahrenheit. A cast iron burner with an automatic safety ignition pilot generates up to 40,000 BTU/hour. The oven runs on 120 Volts/60 Hertz/1 Phase, 3.4 Amps, and comes with a 6 inches cord dedicated to 3-prong plug (grounding NEMA 5-15P).
LongDescription#@#NA#@@#Cleaning Instructions#@#Clean the exterior of the Montague V136-5 Gas Range daily. To clean the range top, wash all the burners with lukewarm water and dishwashing liquid. Scrub the food residue with a non-abrasive brush, and then rinse thoroughly. To clean the convection oven, take out all the racks first and set them aside. Once all the racks have been detached, apply an oven cleaner. Apply the cleaner on every part of the interior. Still guided by the manual, scrub and wipe the cleaner off the surfaces. Rinse them thoroughly.
For stubborn stains, use a cleaning brush or washcloth to scrub them. Once done, wipe away all the cleaner residues. Using dish soap, thoroughly clean the racks that were set aside in the beginning. Rinse them and let them dry before operating it again.#@@#Additional Info#@#The Montague V136-5 Gas Range is NSF listed and CE approved. Its design is ETL and CSA certified. Please specify the gas type when placing an order. Ovens and ranges must be installed in accordance with local codes or the National Fuel Gas Code: ANSI Z223 1; Natural Fuel Gas Code: CAN/CGA-B149.1 or Propane Installation Code: CAN/CGA-B149.2, as applicable. Compliance with the codes is the responsibility of the Owner and Installer. Kindly specify the installation elevation if above 2,000 ft (610m).#@@#General Info#@#The Montague V136-5 Gas Range works in tandem with its convection oven base to provide you with a versatile cooking experience!
The Montague V136-5 Gas Range is not your ordinary heavy-duty range. It features an ergonomic convection oven base – giving you two highly effective kitchen equipment in one unit. It has economically efficient dimensions of 36 inches (height) x 36 inches (width) x 37.25 inches (depth). It weighs 560 pounds. The standard construction of the Montague V136-5 Gas Range includes a satin finish stainless steel front and exterior bottom with a 3-inch deep front rail. Other surfaces are painted black with a durable and heat resistant electrolytic zinc undercoating. The standard 4-inch rear flue riser is made of stainless steel for effectiveness and easy cleaning. This massive comes with 6-inch adjustable stainless steel legs for strong support, and 1-1/4 NPT front gas manifold with ½ union on each end.
The range top for the Montague V136-5 Gas Range features three (3) 12 inches (width) and 31 inches (depth) open burner tops. It has heavily ribbed cast iron and surface-ground top grates that promote even heat distribution during cooking. Two large diameter lift-off star burners with raised ports pack 30,000 BTU/hour of heating power. A reliable, automatic standing pilot ignition ensures safe and consistent heating. For convenience and sanitary purposes, a drip pan is positioned under the open burners.
The Montague V136-5 Gas Range’s convection oven base features a 26-5/8 inches (width) x 22-1/4 inches (depth) x 15 inches (height) cooking compartment. It has a muffled, indirect-fire design with blower for quick yet perfectly balanced cooking. The unit is fully furnished with five-position adjustable nickel-plated rack supports with standard three (3) racks. Its heavy-duty, no-spring, counterweighted oven door and interior panels are lined with porcelain for durability and easy cleaning. The thermostat, which is mounted in an insulated cool zone, adjusts temperatures from low to 500 degrees Fahrenheit. A cast iron burner with an automatic safety ignition pilot generates up to 40,000 BTU/hour. The oven runs on 120 Volts/60 Hertz/1 Phase, 3.4 Amps, and comes with a 6 inches cord dedicated to 3-prong plug (grounding NEMA 5-15P).#@@#Delivery Details#@#• This equipment requires two or more persons to lift it.
• If a loading dock is not available, kindly use a lift gate instead.
• Before signing the delivery receipt, inspect the Montague V136-5 Gas Range for any damage or missing components.
• Please check the dimension of the access path to the final location (door’s width and height). This is to ensure the unit will fit the installation space.
• Please provide the Montague V136-5 Gas Range with an adequate ventilation system.
• This unit must not be connected to a power source unless you are certain that it matches the electrical specifications found in the owner’s manual.
• This equipment is not intended for outdoor installation.#@@#deliverynotes#@#Culinary Depot normally ships the Montague V136-5 Gas Range in # business days of your payment being received and cleared.#@@#Maintenance Guide#@#Please ensure Montague V136-5 Gas Range is not connected to the power supply prior to any maintenance attempts. Once the unit has been powered down, let the stove and the oven base cool down significantly before approaching it with cleaning materials. For appropriate cleaning substances and instruments, please refer only to the manual provided by the manufacturer.
