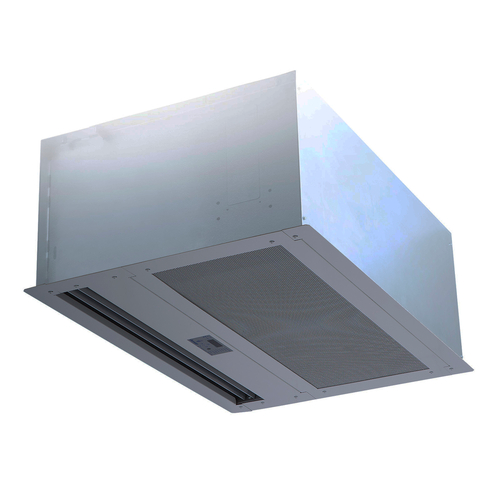

Stop compromising airflow control for aesthetics. This recessed air door installs flush with ceiling lines and maintains high-performance separation between interior climates and external air, accommodating mounting heights up to 16 feet. Designed for commercial facilities, the unit effectively handles large openings with three motors and two speed settings to meet demand.
LongDescription#@#NA#@@#Cleaning Instructions#@#Wipe exterior aluminum panels and bottom access panel with a mild detergent solution and soft cloth, then rinse and dry. Spray hinges and motor mounts with manufacturer-approved lubricant every 90 days. Inspect seals and mounting hardware monthly; tighten fasteners and replace worn gaskets. Clean intake grilles with vacuum or soft brush to prevent debris buildup that attracts pests. Regular cleaning prevents cross-contamination of high-touch zones and maintains compliance with health codes.#@@#Additional Info#@#Berner ARC16-3120A-3 is a 120" un-heated recessed air door with three 1 HP motors, two-speed control, hinged aluminum access panel, cULus certified, 480V 3-Ph operation, for mounting heights up to 16 ft., made in USA, 355 lbs.#@@#General Info#@#Description #@#
Stop compromising airflow control for aesthetics. This recessed air door installs flush with ceiling lines and maintains high-performance separation between interior climates and external air, accommodating mounting heights up to 16 feet. Designed for commercial facilities, the unit effectively handles large openings with three motors and two speed settings to meet demand.
#@@# Motor Configuration#@#
Three 1 HP motors deliver sustained airflow for wide openings. Engineers specified two speeds per motor, allowing operators to balance power use and wind pressure for consistent separation.
#@@# Electrical Specification#@#
The unit operates on 480 volts, three-phase power to support continuous duty cycles. Technicians will appreciate its compatibility with standard industrial power systems and simplified wiring requirements.
#@@# Control System#@#
An Intelliswitch controller provides reliable, repeatable adjustments for airflow and runtime. Facility staff can achieve consistent performance across shifts without complex programming.
#@@# Installation Design#@#
Recessed architectural construction enables a clean, unobtrusive integration into ceiling planes. Contractors receive a hinged aluminum bottom access panel to simplify electrical access and routine service.
#@@# Compliance and Origin#@#
cULus certification confirms compliance with US and Canadian safety standards, assuring inspectors and project managers of regulatory alignment. The unit ships assembled in the USA, supporting local sourcing policies and streamlined replacement parts logistics.
#@@# Capacity and Fit#@#
At 120 inches nominal width, the unit covers openings up to roughly 131 inches, with an effective operational height for openings to 16 feet. Specification clarity allows planners to select the correct model for specific opening geometries and traffic patterns.
#@@#Delivery Details#@#
• Please ensure to handle the product with utmost care.
• Check if the product you have received has all the essential parts and accessories.
• Make sure to examine the product for damage before signing the delivery receipt.
• Contact customer service for delivery concerns.
• Delivery times may vary based on location.#@@#deliverynotes#@#NA#@@#Maintenance Guide#@#Maintain the Berner ARC16-3120A-3 air door with scheduled inspections and service logs. Inspect motor mounts, fan blades, and electrical connections monthly; tighten terminals to recommended torque and replace frayed wiring. Clean intake and discharge surfaces weekly to prevent airflow restriction. Lubricate bearings per manufacturer intervals with specified grease. Verify Intelliswitch settings after power cycling and confirm two-speed operation.
