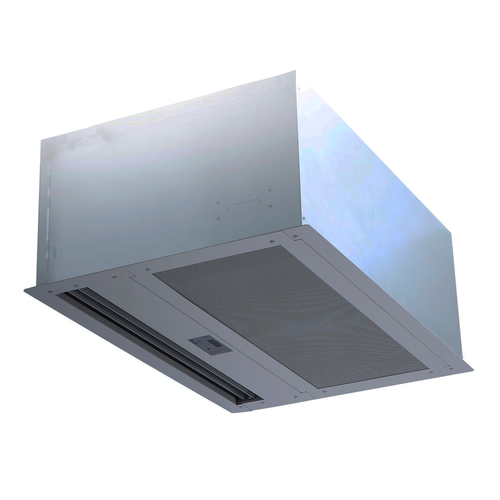

Stop selling climate control as an afterthought. This 96-inch heated recessed air door delivers targeted airflow and electric heating power to protect interior environments while supporting high ceiling installations and heavy traffic openings. Designed for industrial and institutional settings, this unit integrates three 1 HP motors with two-speed operation and a programmable Intelliswitch controller to maintain consistent air separation and temperature control at mounting heights up to 16 feet.
LongDescription#@#NA#@@#Cleaning Instructions#@#Wipe exterior surfaces and high-touch zones with a detergent solution, then disinfect per label directions; focus on menu covers, chair backs, door handles, salt/pepper shakers, and booth creases. Use soft cloths to avoid finishes damage and inspect for food buildup under shelves and around serving stations. Clean weekly; increase frequency during outbreaks. Regular cleaning prevents contamination, deters pests, preserves furnishings, and supports health-code compliance.#@@#Additional Info#@#Berner ARC16-3096E-3 is a 96" heated recessed air door rated 480V, 3-Ph with three 1 HP motors; Intelliswitch control provides 42 kW heating for heights up to 16 ft, cULus certified, with a hinged white aluminum access panel, made in USA.#@@#General Info#@#Description #@#
Stop selling climate control as an afterthought. This 96-inch heated recessed air door delivers targeted airflow and electric heating power to protect interior environments while supporting high ceiling installations and heavy traffic openings. Designed for industrial and institutional settings, this unit integrates three 1 HP motors with two-speed operation and a programmable Intelliswitch controller to maintain consistent air separation and temperature control at mounting heights up to 16 feet.
#@@# Three Motor Design#@#
Three 1 HP motors provide robust airflow capacity and redundancy for continuous operation. Engineers specified multiple motors to distribute load, reduce individual motor strain, and sustain performance under prolonged duty cycles.
#@@# Two Speed Control#@#
Two-speed fan selection enables operators to match performance to traffic conditions, reducing energy use during off-peak periods. Facility technicians gain flexibility to optimize airflow for door cycles without compromising separation efficiency.
#@@# Electric Heating Package#@#
A 42 kW electric heat module supplies rapid thermal recovery for conditioned spaces, allowing the unit to counteract infiltration in cold climates. Designers sized the heating to support mounting heights to 16 feet while meeting three-phase 480 volts power requirements.
#@@# Intelliswitch Controller#@#
The Intelliswitch controller provides programmable sequencing for fan and heat stages, improving response to door activity. Maintenance crews benefit from simplified diagnostics and streamlined adjustments that limit downtime.
#@@# Recessed Architectural Fit#@#
A recessed configuration and hinged aluminum bottom access panel simplify integration into ceilings or soffits while preserving interior aesthetics. Installers appreciate the white aluminum panel that allows tool-free access for routine inspection and service.
#@@#Delivery Details#@#
• Please ensure to handle the product with utmost care.
• Check if the product you have received has all the essential parts and accessories.
• Make sure to examine the product for damage before signing the delivery receipt.
• Contact customer service for delivery concerns.
• Delivery times may vary based on location.#@@#deliverynotes#@#NA#@@#Maintenance Guide#@#Inspect the ARC16-3096E-3 air door monthly to ensure consistent performance. Remove dust from intake and discharge grilles using a soft brush and vacuum. Tighten mounting hardware and verify the hinged white aluminum bottom access panel opens freely. Lubricate motor bearings per manufacturer interval and confirm all three 1 HP motors operate at both speeds. Test Intelliswitch controls and verify 480 volts, 3-Ph connections with CSA or cULus documentation on file.
