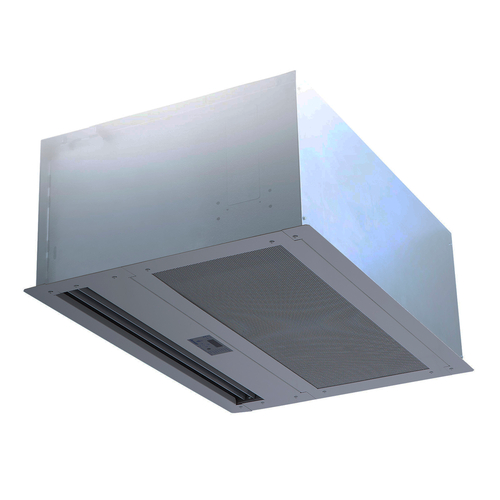

When traffic flows through a facility, an effective air management solution is essential for maintaining climate separation without introducing heat. This unheated architectural recess air door provides targeted airflow across openings up to 16 feet tall, powered by three 480-volt, 3-phase motors, ensuring continuous performance for high-usage doorways. Facilities requiring durable, code-compliant air curtains will appreciate the reliable operation and straightforward serviceability of this model.
LongDescription#@#NA#@@#Cleaning Instructions#@#Wipe high-touch areas like menu covers, shakers, chair backs, and door handles with a detergent solution and microfiber cloth. Spot-sanitize non-food-contact surfaces with an EPA-approved disinfectant; follow label dwell time. Vacuum or sweep crevices under booths and shelves daily to deter pests. Inspect finishes weekly and remove spills promptly to prevent staining. Regular cleaning reduces cross-contamination, boosts customer perception, and helps pass health inspections.#@@#Additional Info#@#Berner ARC16-3096A-3 is a 96" un‑heated recessed air door rated 480 volts, 3‑phase with three 1 HP motors, two speeds via Intelliswitch, cULus certified, made in USA, mounts to openings up to 16 ft, and weighs 315 pounds.#@@#General Info#@#Description #@#
When traffic flows through a facility, an effective air management solution is essential for maintaining climate separation without introducing heat. This unheated architectural recess air door provides targeted airflow across openings up to 16 feet tall, powered by three 480-volt, 3-phase motors, ensuring continuous performance for high-usage doorways. Facilities requiring durable, code-compliant air curtains will appreciate the reliable operation and straightforward serviceability of this model.
#@@# Motor Configuration#@#
Three 1 HP motors deliver staged airflow to maintain separation in high-traffic openings. Engineers can depend on the three-motor layout to sustain volume with redundancy; technicians can access motors through the hinged bottom panel for routine inspection and service.
#@@# Two-Speed Control#@#
An Intelliswitch controller provides two-speed operation to match load and reduce energy use during low-demand periods. Operators can quickly adjust airflow to balance pressure control and energy consumption without modifying electrical infrastructure.
#@@# Recessed Installation#@#
A recessed housing installs neatly above doors, preserving architectural aesthetics while keeping clearances minimal. Architects specify the unit for openings between 96 inches and 107 inches wide, allowing integration into new builds and retrofits without prominent surface-mounted bulk.
#@@# Access Panel Design#@#
A hinged white aluminum bottom access panel simplifies maintenance and protects components from contamination. Maintenance crews gain quick access to fans and controls, minimizing downtime during filter changes or motor servicing.
#@@# Electrical Specification#@#
The unit requires 480 volts, 3-phase power and operates at 60 hertz to align with commercial electrical systems. Facilities with three-phase distribution can connect directly, ensuring stable motor performance and compliance with CSA and cULus listings.
#@@#Delivery Details#@#
• Please ensure to handle the product with utmost care.
• Check if the product you have received has all the essential parts and accessories.
• Make sure to examine the product for damage before signing the delivery receipt.
• Contact customer service for delivery concerns.
• Delivery times may vary based on location.#@@#deliverynotes#@#NA#@@#Maintenance Guide#@#Inspect fan blades and motor mounts monthly; tighten fasteners and replace worn bearings to prevent vibration. Clean intake and discharge grilles weekly with compressed air or a soft brush to remove dust. Test Intelliswitch controller quarterly for correct operation and verify voltage at 480 volts. Lubricate motors per schedule and confirm each motor reads 1 HP under load. Check hinges for corrosion and secure weather seals to minimize heat transfer.
