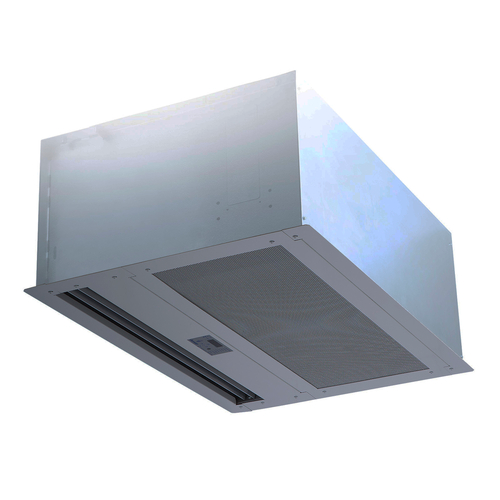

Engineered for continuous service, this recessed 16-air door ensures consistent air separation and electric heat for large openings while maintaining indoor climate control and energy efficiency. Designed for mounting heights up to 16 feet, the unit combines two 1 HP motors with a 2-speed configuration and a 28 kW heating element to deliver reliable performance in demanding entrances. The controller allows for straightforward operation, and the assembly meets cULus standards while being proudly made in the USA.
LongDescription#@#NA#@@#Cleaning Instructions#@#Wipe external surfaces with mild detergent and a soft cloth; rinse and dry to prevent residue. Clean high-touch zones—control panel, access panel, and mounting trim—using EPA-registered disinfectant per label contact time to prevent norovirus and virus transfer. Inspect and clear debris from inlet openings and housing monthly to deter pests and maintain airflow. Record cleaning dates and actions to support CSA and health inspections.#@@#Additional Info#@#Berner ARC16-2096E-3 is a 96" heated recessed air door with 16 air streams for heights up to 16 ft. It runs on 480 volts, 3-Ph with two 1 HP motors, two speeds, Intelliswitch control, and is cULus certified.#@@#General Info#@#Description #@#
Engineered for continuous service, this recessed 16-air door ensures consistent air separation and electric heat for large openings while maintaining indoor climate control and energy efficiency. Designed for mounting heights up to 16 feet, the unit combines two 1 HP motors with a 2-speed configuration and a 28 kW heating element to deliver reliable performance in demanding entrances. The controller allows for straightforward operation, and the assembly meets cULus standards while being proudly made in the USA.
#@@# Motor Configuration.#@#
Two motors provide redundancy and balanced airflow for extended duty cycles. Each motor produces 1 HP, enabling the curtain to sustain airflow across openings up to 96 inches or wider, effectively reducing strain during peak usage.
#@@# Heating Capacity.#@#
Electric heating delivers 28 kW to maintain consistent temperature differentials at entryways. The high-voltage 480 volts three-phase design supports rapid recovery and stable output for environments requiring controlled interior conditions.
#@@# Airflow Control.#@#
A two-speed setup allows operators to select higher throughput for busy periods and lower flow for quieter times. The Intelliswitch controller simplifies speed selection and system monitoring, optimizing performance without complex adjustments.
#@@# Installation Flexibility.#@#
The recessed architectural design integrates seamlessly with ceilings for a discreet appearance, preserving aesthetics in professional spaces. The hinged white aluminum bottom access panel provides direct service access, minimizing downtime and facilitating routine maintenance.
#@@# Compliance and Safety.#@#
The unit carries cULus certification, confirming adherence to recognized safety and performance standards. The three-phase electrical configuration aligns with common commercial power infrastructure, supporting stable operation in institutional settings.
#@@#Delivery Details#@#
• Please ensure to handle the product with utmost care.
• Check if the product you have received has all the essential parts and accessories.
• Make sure to examine the product for damage before signing the delivery receipt.
• Contact customer service for delivery concerns.
• Delivery times may vary based on location.#@@#deliverynotes#@#NA#@@#Maintenance Guide#@#Inspect the air curtain monthly and tighten mounting hardware. Clean intake and discharge grilles with a vacuum and lint brush to maintain airflow. Verify electrical connections and confirm 480 volts, 3-Ph supply before service. Lubricate motor bearings per manufacturer intervals and replace filters if airflow decreases. Test Intelliswitch controller functions and both speeds. Confirm door clearance and reseal damaged gaskets to preserve thermal separation and efficiency.
