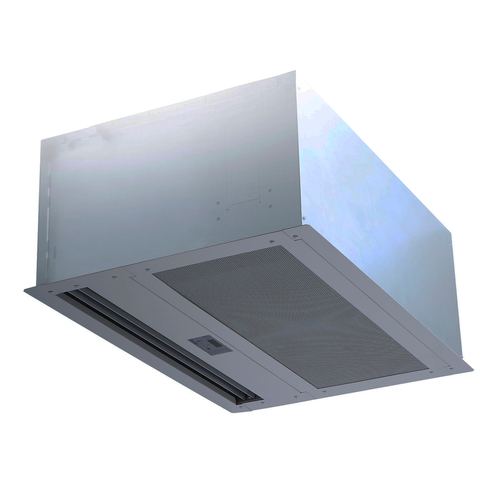

Stop sacrificing control for convenience. This unheated, recessed air door delivers concentrated airflow and reliable operation for medium and large openings, maintaining indoor conditions while minimizing energy transfer. Designed for mounting heights up to 16 feet, the unit fits 60-inch openings and installs into architectural soffits where concealment and clean aesthetics are essential.
LongDescription#@#NA#@@#Cleaning Instructions#@#Wipe exterior surfaces and the hinged bottom panel daily with a mild detergent and a soft cloth; avoid abrasive cleaners. Spot-spray visible grime with a 70% alcohol or EPA-registered sanitizer and wipe dry. Inspect fan intake and mounting area weekly; vacuum debris and tighten fasteners. Clean high-touch controls and handles frequently to prevent germ transfer, deter pests, and maintain inspection readiness and unit longevity.#@@#Additional Info#@#Berner ARC16-1060A-1 is a 60" unheated recessed air door delivering two speeds from a 1 HP motor at 120 volts, single phase. It mounts to 16 ft openings, includes Intelliswitch control and hinged aluminum access panel, cULus certified.#@@#General Info#@#Description #@#
Stop sacrificing control for convenience. This unheated, recessed air door delivers concentrated airflow and reliable operation for medium and large openings, maintaining indoor conditions while minimizing energy transfer. Designed for mounting heights up to 16 feet, the unit fits 60-inch openings and installs into architectural soffits where concealment and clean aesthetics are essential.
#@@# Motor Configuration#@#
The unit utilizes a single 1 HP motor to generate the required airflow for a 60-inch opening, ensuring sustained performance under continuous use. Two-speed operation allows technicians to select higher flow for peak traffic and lower flow for reduced noise during off-peak hours.
#@@# Control Interface#@#
An Intelliswitch controller provides precise, repeatable control of motor speeds and sequencing for integrated systems. The controller supports straightforward wiring to single-phase, 120-volt supplies and simplifies commissioning for facility teams.
#@@# Service Access#@#
A hinged white aluminum bottom access panel enables quick access to electrical and mechanical components without the need for full unit removal. Maintenance crews can complete routine inspections and perform belt or motor work with minimal downtime.
#@@# Electrical Compatibility#@#
The air door operates on 120 volts and 60 hertz single-phase power, matching standard commercial circuits and reducing the need for dedicated transformers. Installers can connect directly to existing branch circuits while adhering to local code and CSA or cULus requirements.
#@@# Mounting Flexibility#@#
Engineered for recessed architectural installation, the unit accommodates mounting heights up to 16 feet and interfaces with 60 to 71-inch side openings. Architects and contractors can integrate the unit into soffits or false ceilings to preserve design lines.
#@@#Delivery Details#@#
• Please ensure to handle the product with utmost care.
• Check if the product you have received has all the essential parts and accessories.
• Make sure to examine the product for damage before signing the delivery receipt.
• Contact customer service for delivery concerns.
• Delivery times may vary based on location.#@@#deliverynotes#@#NA#@@#Maintenance Guide#@#Inspect the air curtain monthly for dust accumulation on intake grilles and impellers; remove debris with a soft brush and vacuum to maintain airflow. Verify mounting anchors and the hinged aluminum access panel for secure fit and corrosion; tighten fasteners and lubricate hinges with a light machine oil. Test the Intelliswitch controller and both motor speeds under load; replace worn belts or bearings promptly. Confirm cULus label legibility and document maintenance intervals.
