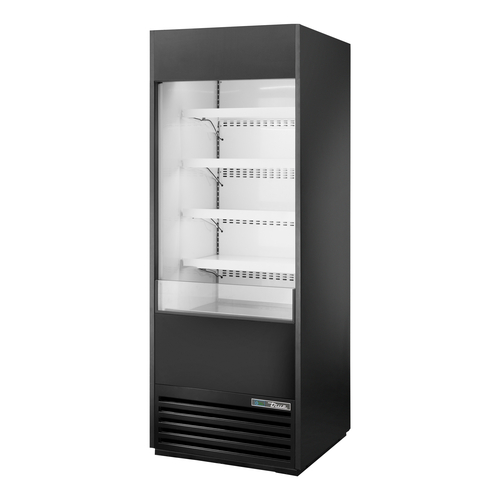

For high-traffic retail and foodservice environments that require continuous open-air display and reliable cold retention, this vertical air curtain merchandiser ensures consistent product visibility and controlled refrigeration. Operating on 115 volts with a 60 Hz single-phase electrical supply, it draws 9.5 Amps and utilizes a 3/4 horsepower compressor optimized for sustained duty cycles. The unit employs R-290 refrigerant and features a self-contained refrigeration system designed for efficient heat rejection and stable internal temperatures.
LongDescription#@#NA#@@#Cleaning Instructions#@#Unplug the True TOAM-30-HC~TSL01 and remove all product. Wipe interior surfaces and shelves with a mild soap solution and a soft cloth. Clean condenser coils every month to maintain efficiency. Use non-abrasive cleaners on the black exterior and white interior. Inspect door seals and replace if worn. R-290 systems require certified technicians for refrigerant service. Dry completely before reconnecting power to prevent corrosion and electrical faults.#@@#Additional Info#@#The True TOAM-30-HC~TSL01 30" air curtain merchandiser runs on 115 volts, 60 hertz, 9.5 Amps, and R-290 refrigerant. It has a black exterior, white interior, four shelves, NEMA 5-15P plug, and a 3/4 hp compressor. Made in the USA and UL certified.#@@#General Info#@#Description #@#
For high-traffic retail and foodservice environments that require continuous open-air display and reliable cold retention, this vertical air curtain merchandiser ensures consistent product visibility and controlled refrigeration. Operating on 115 volts with a 60 Hz single-phase electrical supply, it draws 9.5 Amps and utilizes a 3/4 horsepower compressor optimized for sustained duty cycles. The unit employs R-290 refrigerant and features a self-contained refrigeration system designed for efficient heat rejection and stable internal temperatures.
#@@# Dimensions And Capacity#@#
The panel width measures 30 inches, with a cabinet depth of 29.88 inches and a finished height of 78.5 inches, allowing for multiple shelf levels while maintaining a compact footprint. The product weight reaches 390 pounds, supporting high-density merchandising without compromising access or ergonomic stocking.
#@@# Shelf Configuration#@#
Four-tier shelving provides systematic organization for packaged foods and chilled items, offering adjustable positions to accommodate various SKU heights. Each shelf allows for rapid restocking and supports consistent product presentation across the cabinet face.
#@@# Air Curtain Performance#@#
The vertical air curtain delivers a continuous, directed airflow that minimizes the infiltration of ambient warm air, maintaining internal temperature uniformity across all four shelves. The self-contained refrigeration and air management reduce compressor cycling, enhancing energy stability during peak traffic periods.
#@@# Controls And Electrical#@#
The unit connects via a NEMA 5-15P plug and operates at 115 volts, 60 Hz, 1-Ph, facilitating simple integration with standard service circuits in commercial kitchens and retail spaces. The electrical draw of 9.5 Amps is crucial for circuit planning in multi-unit installations and kitchen load balancing.
#@@#Delivery Details#@#
• Please ensure to handle the product with utmost care.
• Check if the product you have received has all the essential parts and accessories.
• Make sure to examine the product for damage before signing the delivery receipt.
• Contact customer service for delivery concerns.
• Delivery times may vary based on location.#@@#deliverynotes#@#Upon confirmation of completed payment, Culinary Depot will ship/deliver the True TOAM-30-HC~TSL01 Vertical Air Curtain Merchandiser.#@@#Maintenance Guide#@#Inspect condenser coils monthly and remove dust with a soft brush to maintain the True TOAM-30-HC~TSL01 air curtain merchandiser’s cooling efficiency. Sanitize interior surfaces with mild detergent and warm water; rinse and dry shelves before restocking. Verify door seals and gaskets for compression and replace if cracked. Measure voltage and amperage periodically; document readings near 115v and 9.5 Amps. Schedule professional refrigerant checks for R-290 annually to ensure safe operation.
