Stop compromising speed for control. This glass and plate chiller combines stainless steel construction with a compact footprint to deliver rapid cooling capacity for high-traffic bars, cafeterias, and hospitality lines while maintaining consistent chilled temperatures for glassware and plates. Designed for continuous service, this unit minimizes thermal recovery time and reduces holdover losses during peak periods.

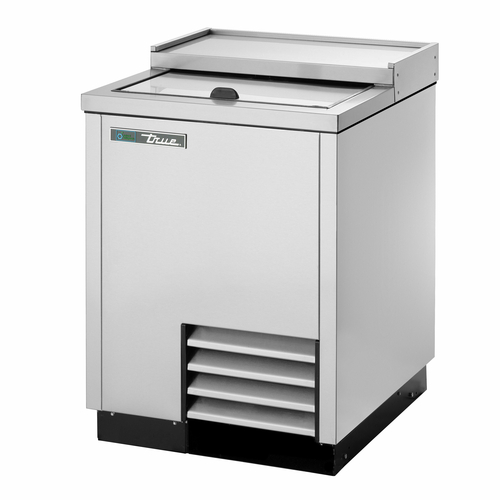

LongDescription#@#NA#@@#Cleaning Instructions#@#Unplug unit and remove contents. Empty drainage and lift sliding lid. Clean interior with mild detergent and warm water using a soft cloth. Scrub stainless steel exterior with non-abrasive cleaner and rinse. Sanitize food contact surfaces per CSA or local guidelines and air dry. Clean condenser coils monthly to maintain efficiency and reduce energy use. Inspect door seals for wear and replace if needed. Reconnect power only after unit is fully dry.#@@#Additional Info#@#True T-24-GC-S-HC 24.5" stainless steel glass and plate chiller operates on 115 volts, 60 Hz, 1-Ph with a 0.2 HP compressor. It weighs 180 pounds and features a deep-well design with 1 sliding lid, galvanized steel interior, and CSA certification.#@@#General Info#@#Description #@#
Stop compromising speed for control. This glass and plate chiller combines stainless steel construction with a compact footprint to deliver rapid cooling capacity for high-traffic bars, cafeterias, and hospitality lines while maintaining consistent chilled temperatures for glassware and plates. Designed for continuous service, this unit minimizes thermal recovery time and reduces holdover losses during peak periods.
#@@# Dimensions And Capacity#@#
This unit measures 24.5 inches wide with a depth of 26.88 inches and features a deep well design that accommodates standard glassware and plates in a compact footprint. Operators receive 1 to 5 cubic feet of usable chilling volume, supporting frequent turnover without requiring oversized counter space.
#@@# Cooling System Performance#@#
A 1/5 HP compressor running on R-290 refrigerant drives reliable cooling while consuming only 2.3 amps at 115v and 60 hertz on a single-phase circuit. Technicians will appreciate the 0.2 HP rating in specification sheets and the NEMA 5-15P plug for straightforward electrical connection.
#@@# Construction And Finish#@#
The all-stainless steel exterior resists corrosion and stands up to daily cleaning protocols, while the galvanized steel interior offers durable surfaces that withstand repeated loading and unloading. Designers benefit from a professional aesthetic that integrates seamlessly with back bar equipment and service counters.
#@@# Controls And Serviceability#@#
The unit employs an electric filter power system and accepts standard service procedures, easing routine maintenance and diagnostics for in-house staff. Field technicians can access common components quickly, which reduces downtime and service labor costs.
#@@# Compliance And Origin#@#
This chiller uses an industry-accepted refrigerant and meets CSA certification requirements, ensuring adherence to safety and performance standards expected by institutional buyers.
#@@#Delivery Details#@#
• Please ensure to handle the product with utmost care.
• Check if the product you have received has all the essential parts and accessories.
• Make sure to examine the product for damage before signing the delivery receipt.
• Contact customer service for delivery concerns.
• Delivery times may vary based on location.#@@#deliverynotes#@#Upon confirmation of completed payment, Culinary Depot will ship/deliver the True T-24-GC-S-HC Glass and Plate Chiller.#@@#Maintenance Guide#@#Inspect condenser coils weekly and remove debris using a soft brush to maintain heat transfer efficiency. Drain and sanitize the evaporator pan monthly with a biocide solution following manufacturer guidelines. Verify door slides and gaskets for wear; replace damaged seals to preserve temperature stability. Measure voltage and amperage quarterly; record 115v and 2.3 amp readings under load. Defrost per schedule and clean stainless surfaces with pH-neutral cleaner to prevent corrosion.
