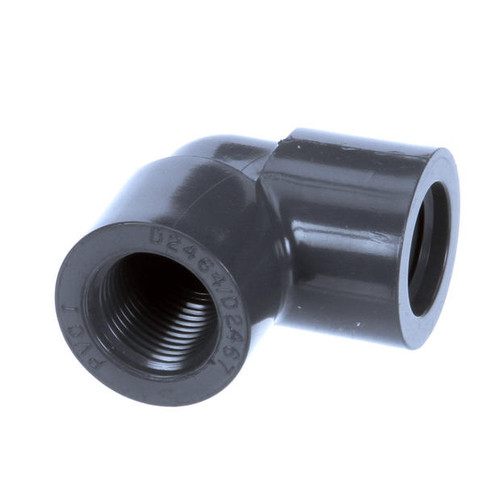

Built for commercial plumbing and equipment service, this 90-degree elbow provides precise fluid routing and reliable thread engagement for pressurized systems. Engineers designed the fitting to meet 1/2-14 NPT specifications, ensuring consistent sealing and compatibility with standard male NPT threads. Field technicians receive a compact, low-mass component that simplifies tight-turn installations without adding bulk to assemblies.
LongDescription#@#NA#@@#Cleaning Instructions#@#Clean high-touch zones like menu covers, salt shakers, chair backs, and bathroom handles daily to prevent germ transfer and food contamination. Use detergent and warm water, scrub seams and crevices with a soft brush, rinse, then apply an EPA-registered sanitizer per label; allow required dwell time. Clean spills immediately to deter pests and protect finishes. Inspect surfaces weekly and document procedures to support CSA and health-code compliance.#@@#Additional Info#@#PartsTown Z086494 90-degree elbow, 1/2-14 NPT, provides a compact angled connection for commercial plumbing and equipment; it measures 2" length, 2" width, 1.35" height, weighs 0.11 pounds, and meets industrial installation requirements.#@@#General Info#@#Description #@#
Built for commercial plumbing and equipment service, this 90-degree elbow provides precise fluid routing and reliable thread engagement for pressurized systems. Engineers designed the fitting to meet 1/2-14 NPT specifications, ensuring consistent sealing and compatibility with standard male NPT threads. Field technicians receive a compact, low-mass component that simplifies tight-turn installations without adding bulk to assemblies.
#@@# Threaded 1/2-14 NPT#@#
Technicians benefit from an exact thread form that mates with standard 1/2-14 NPT male fittings, reducing the risk of leak paths at mechanical joints. The standardized thread pitch facilitates repeatable torque application and predictable sealant performance during assembly.
#@@# Right Angle Configuration#@#
Installers gain from the 90-degree geometry that converts linear runs into perpendicular orientations, enabling compact routing in confined spaces. The elbow minimizes pipe stress at direction changes and preserves flow characteristics for consistent system performance.
#@@# Compact Footprint#@#
Designers appreciate the small dimensions—approximately 2 inches long and 1.35 inches high—which allow integration into dense equipment bays and tight undercounter cavities. The reduced size eases placement near heat sources and electrical components while maintaining clearances for maintenance.
#@@# Low Mass Construction#@#
Service crews handle a component weighing roughly 0.11 pounds, which speeds manual positioning and reduces strain during repetitive installs. The lightweight design also lowers shipped freight mass for partial-service orders and simplifies on-site inventory handling.
#@@# Material Compatibility#@#
Specified materials resist common corrosive agents encountered in commercial kitchens and institutional plumbing, preserving thread integrity over repeated service cycles. Consistent material selection supports compliance with routine sanitation protocols and reduces replacement frequency.
#@@#Delivery Details#@#
• Please ensure to handle the product with utmost care.
• Check if the product you have received has all the essential parts and accessories.
• Make sure to examine the product for damage before signing the delivery receipt.
• Contact customer service for delivery concerns.
• Delivery times may vary based on location.#@@#deliverynotes#@#NA#@@#Maintenance Guide#@#Inspect the Z086494 elbow regularly for leaks and thread wear; replace immediately if threads show scoring or deformation. Clean external surfaces with a soft cloth and mild detergent to remove grease and scale. Apply a compatible thread sealant per CSA guidelines and torque to manufacturer specifications to prevent seepage. Verify alignment to avoid undue strain on joints. Schedule quarterly inspections in high-use environments and log findings for traceability.
