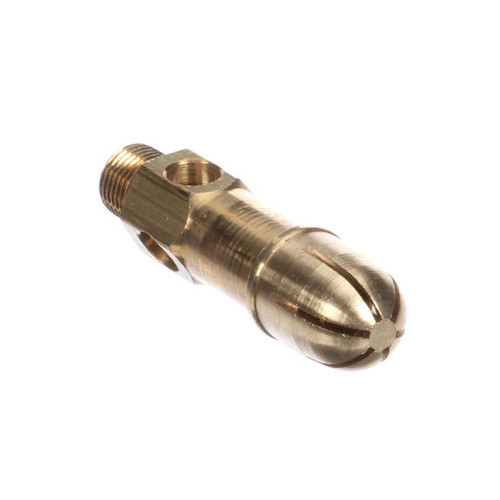

Deliver consistent flame control and simplified part replacement with a precision burner jet engineered for professional kitchens. This jet threads into 1/8-NPT connections and meters fuel flow with a 0.0225 orifice size calibrated to match #651 through #74 settings, enabling repeatable flame characteristics across commercial ranges and broilers. Operators gain predictable heat delivery and reduced tuning time when mechanics install this component during preventive maintenance or repair.
LongDescription#@#NA#@@#Cleaning Instructions#@#Clean burner jets regularly to prevent contamination of food and hands and to maintain inspection compliance. Remove jet, soak 5–10 minutes in warm water with mild detergent, then brush ports with a soft nylon brush. Rinse with clear water and blow dry with compressed air or allow to air dry fully before reinstalling. Inspect threads and seating for damage; replace if deformed. Keep area free of grease and food debris to deter pests and extend service life.#@@#Additional Info#@#PartsTown Z017765 burner jet #651 - #74 (0.0225) 1/8-NPT offers precise fuel metering for commercial ranges and fryers. The machined orifice ensures consistent flame, with a length of 2.05" and weight of 0.08 pounds, plus easy installation.#@@#General Info#@#Description #@#
Deliver consistent flame control and simplified part replacement with a precision burner jet engineered for professional kitchens. This jet threads into 1/8-NPT connections and meters fuel flow with a 0.0225 orifice size calibrated to match #651 through #74 settings, enabling repeatable flame characteristics across commercial ranges and broilers. Operators gain predictable heat delivery and reduced tuning time when mechanics install this component during preventive maintenance or repair.
#@@# Orifice Size#@#
Manufactured with a 0.0225 inch orifice, the jet provides a narrow tolerance that stabilizes gas flow and flame shape. Technicians achieve consistent output when they match this size to appliance requirements, minimizing flame variability during peak service.
#@@# Threaded Connection#@#
The 1/8-NPT male thread ensures compatibility with standard pilot and burner ports used in many commercial cooking units. Maintenance staff can install and remove the part using common tools, reducing downtime during routine servicing.
#@@# Compatibility Range#@#
Designed to cover #651 through #74 burner settings, the jet suits a range of pressure and fuel conditions found in institutional kitchens. Managers can standardize inventory because one part supports multiple appliance models across a facility.
#@@# Physical Dimensions#@#
Measuring approximately 2.05 inches in length with a 0.65 inch height and 2.05 inch width profile, the component fits tight mounting areas without interfering with adjacent parts. Engineers plan clearances accurately using these dimensions to avoid alignment issues.
#@@# Lightweight Construction#@#
Weighing only 0.08 pounds, the jet imposes negligible stress on fragile pilot assemblies and holds securely under vibration. Technicians can handle the unit easily during installation and inspection cycles.
#@@#Delivery Details#@#
• Please ensure to handle the product with utmost care.
• Check if the product you have received has all the essential parts and accessories.
• Make sure to examine the product for damage before signing the delivery receipt.
• Contact customer service for delivery concerns.
• Delivery times may vary based on location.#@@#deliverynotes#@#NA#@@#Maintenance Guide#@#Use a soft brush to gently remove any debris that may have accumulated on the Z017765 burner jet #651 - #74 (0.0225) 1/8-NPT and carefully inspect the threads for any signs of wear or damage. It is important to flush the orifice with low-pressure compressed air to effectively clear away carbon deposits; be sure to avoid using solvents that can corrode the fittings. Before reinstallation, apply a light film of CSA-approved anti-seize to the 1/8-NPT threads to ensure proper sealing.
