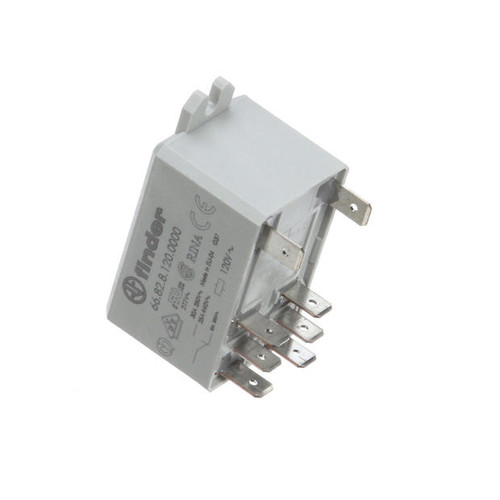

Engineered for dependable switching in commercial equipment, this 30-amp panel-mount, two-pole relay delivers consistent electrical control where serviceability and compact installation matter. Designed for use in culinary and foodservice systems, the relay supports reliable load handling in confined control panels while simplifying wiring and replacement tasks.
LongDescription#@#NA#@@#Cleaning Instructions#@#Wipe high-touch zones—menu covers, shakers, chair backs, and bathroom handles—daily with a food-safe disinfectant to prevent germ transfer and contamination. Clean floors, shelving, and booth crevices to deter pests and avoid health-code violations. Remove spills and salt promptly and polish wood or vinyl surfaces to prevent staining and extend service life. Inspect and tighten hardware after cleaning.#@@#Additional Info#@#The RLY30AMPDPDT-FIN 30AMP relay by PartsTown features a dual-pole, double-throw design, rated for 30 amps, measuring 3.95" x 3.95" x 2", and weighing 0.22 pounds for compact integration into commercial equipment.#@@#General Info#@#Description #@#
Engineered for dependable switching in commercial equipment, this 30-amp panel-mount, two-pole relay delivers consistent electrical control where serviceability and compact installation matter. Designed for use in culinary and foodservice systems, the relay supports reliable load handling in confined control panels while simplifying wiring and replacement tasks.
#@@# Compact Panel Mount#@#
The relay measures 3.95 inches wide and 2 inches high, providing a compact footprint that fits common control enclosures. Short depth and panel-ready mounting reduce required panel real estate and streamline retrofits.
#@@# Two-Pole Configuration#@#
Featuring a two-pole design, the relay separates and controls two circuits simultaneously for coordinated switching of multi-line loads. This layout minimizes additional components and simplifies control logic in kitchen automation and equipment panels.
#@@# 30 Amp Capacity#@#
Rated for 30 amps, the relay handles moderate commercial loads such as pumps, fans, and heaters used in foodservice equipment. The amperage rating provides a balance between current capability and compact form factor for panel installations.
#@@# Panel-Ready Installation#@#
This unit mounts directly to panels, eliminating separate relay sockets and lowering installation time. Panel mounting improves access for maintenance and reduces the chance of loose connections inside crowded enclosures.
#@@# Service-Oriented Design#@#
PartsTown supplies the component with a configuration optimized for replacement in existing systems, allowing technicians to swap units quickly during scheduled service windows. Fast field replacement helps reduce downtime and keeps production schedules on track.
#@@# Industry-Compatible Dimensions#@#
With a low profile and standardized dimensions, the relay integrates with common control layouts found in restaurants, hospitals, and institutional kitchens. Consistent sizing eases inventory planning and supports streamlined parts management.
#@@#Delivery Details#@#
• Please ensure to handle the product with utmost care.
• Check if the product you have received has all the essential parts and accessories.
• Make sure to examine the product for damage before signing the delivery receipt.
• Contact customer service for delivery concerns.
• Delivery times may vary based on location.#@@#deliverynotes#@#NA#@@#Maintenance Guide#@#Please follow these steps to maintain the RLY30AMPDPDT-FIN relay: inspect panel mount and hardware monthly for tightness and corrosion, tighten fasteners to spec, clean contacts with a dry cloth, avoid solvents. Cycle the relay under nominal load and check actuation. Measure coil/contact resistance during maintenance; replace if values deviate. Keep temperature/ventilation within design limits.
