This hinge kit ensures reliable door alignment and consistent operation for high-traffic kitchens and service points. Engineers designed the assembly to endure frequent cycles while maintaining smooth articulation, and technicians can install it quickly to minimize downtime. PartsTown provides a precision component that facilitates rapid repair and keeps production areas fully operational.
LongDescription#@#NA#@@#Cleaning Instructions#@#Wipe hinge kit and surrounding door areas with a mild detergent and warm water using a soft cloth; rinse and dry immediately. Disinfect high-touch zones (handles, chair backs, menu covers) with an EPA-registered sanitizer at label dilution; follow contact time. Inspect for debris under shelves and in booth crevices and remove residues to deter pests. Clean regularly to prevent contamination, maintain appearance, and meet health code standards.#@@#Additional Info#@#PartsTown 953396 hinge kit fits bottom-right door applications and includes a cartridge hinge for tool-free replacement; dimensions are 4.6" L, 4.25" W, 1.95" H, weighing 0.59 pounds, meeting CSA guidelines for commercial refrigeration parts.#@@#General Info#@#Description #@#
This hinge kit ensures reliable door alignment and consistent operation for high-traffic kitchens and service points. Engineers designed the assembly to endure frequent cycles while maintaining smooth articulation, and technicians can install it quickly to minimize downtime. PartsTown provides a precision component that facilitates rapid repair and keeps production areas fully operational.
#@@# Hinge Assembly#@#

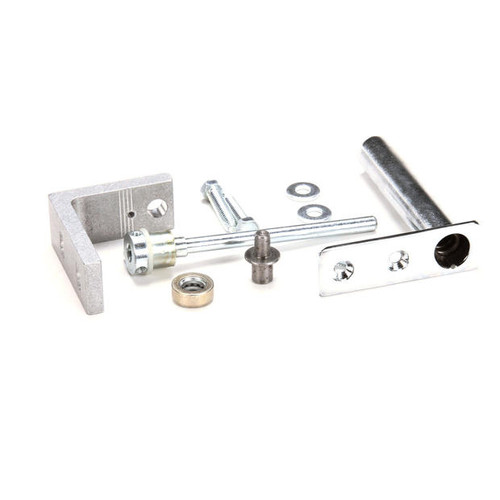

The kit includes a bottom right hinge configured for T-G mounting, ensuring direct load transfer and accurate pivoting under repeated use. Technicians will find that the cartridge hinge design simplifies replacement, reducing service time and eliminating the need for complex adjustments.
#@@# Durable Construction#@#
Manufacturers selected robust materials and machining tolerances to resist wear and maintain alignment across thousands of cycles. Operators benefit from sustained performance and fewer service interventions compared to generic replacements.
#@@# Compact Footprint#@#
The assembly measures approximately 4.6 inches long, 4.25 inches wide, and 1.95 inches high, allowing fitment in confined spaces without altering door geometry. Installers can maintain original clearances while restoring full function.
#@@# Manageable Weight#@#
Weighing about 0.59 pounds, the kit balances solidity with ease of handling during installation and transport. Service staff can manage components comfortably during field replacements and inventory management.
#@@# Compliance Ready#@#
Parts meet applicable regulatory expectations and ship with traceable manufacturer part identification to support maintenance records and procurement controls. Facilities can maintain audit trails and simplify part ordering through consistent labeling.
#@@# Field Service Efficiency#@#
Designers configured the cartridge hinge for tool-friendly access and predictable torque characteristics, enabling technicians to achieve correct seating on the first attempt.
#@@#Delivery Details#@#
• Please ensure to handle the product with utmost care.
• Check if the product you have received has all the essential parts and accessories.
• Make sure to examine the product for damage before signing the delivery receipt.
• Contact customer service for delivery concerns.
• Delivery times may vary based on location.#@@#deliverynotes#@#NA#@@#Maintenance Guide#@#Inspect the hinge kit before installation to confirm part TRUE953396 matches the door model. Use a torque wrench to tighten fasteners to specifications and prevent misalignment. Lubricate moving surfaces with a food-safe lubricant every three months or after 1,000 cycles; wipe excess with a lint-free cloth. Replace worn cartridges immediately to maintain seal integrity. Verify door swing and gasket contact after service. Record maintenance dates and actions for audits.
