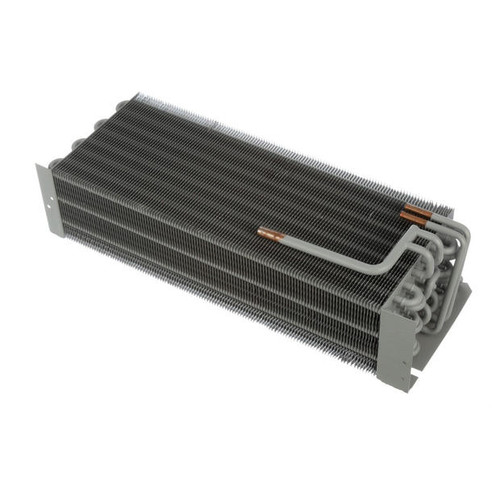

Engineered for reliable refrigeration performance, this evaporator coil fits applications that demand consistent heat transfer and long service intervals. It provides precise refrigerant flow control across the 5 x 8 x 22-5/8-inch profile, supporting stable evaporator temperatures and efficient system duty cycles.
LongDescription#@#NA#@@#Cleaning Instructions#@#Wipe high-touch surfaces (menu covers, shakers, chair backs, bathroom handles) with a detergent solution, then disinfect with an EPA-approved sanitizer following label dwell time. Clean non-food-contact areas (floors, walls, shelving, booth crevices) daily to remove crumbs and grease that attract pests. Remove spills promptly and polish wood or vinyl to prevent staining and material degradation. Maintain records to support health inspections and customer confidence.#@@#Additional Info#@#PartsTown TR322-60009-00 evaporator coil fits refrigeration units, measures 5" x 8" x 22-5/8", weighs 14 lbs, and replaces model 322-60009-00. Ships under UID TR322-60009-00.#@@#General Info#@#Description #@#
Engineered for reliable refrigeration performance, this evaporator coil fits applications that demand consistent heat transfer and long service intervals. It provides precise refrigerant flow control across the 5 x 8 x 22-5/8-inch profile, supporting stable evaporator temperatures and efficient system duty cycles.
#@@# Coil Dimensions#@#
The unit measures 5 x 8 x 22-5/8 inches, enabling direct installation in compatible refrigeration housings. These dimensions allow technicians to verify fit quickly and reduce field modification time.
#@@# Refrigerant Compatibility#@#
Designed for standard refrigeration systems, the coil accommodates common refrigerants used in walk-in coolers and reach-in units. System designers can maintain target evaporating temperatures while minimizing refrigerant charge adjustments.
#@@# Heat Transfer Efficiency#@#
The fin-and-tube construction optimizes surface area for rapid thermal exchange, decreasing pull-down time during load changes. Facilities experience more consistent product temperatures and lower compressor cycling.
#@@# Durable Construction#@#
Built with materials suited for commercial refrigeration environments, the coil resists corrosion and mechanical wear associated with routine service. Maintenance staff benefit from fewer replacements and predictable lifecycle planning.
#@@# Serviceability Features#@#
Trained technicians can access standard connection points for straightforward brazing or fitting during replacement jobs. Reduced labor time improves uptime and simplifies parts inventory decisions.
#@@# Packaging And Weight#@#
Shippers list a package length of 26 inches and a weight of 14 pounds, which aids warehouse planning and handling equipment selection. Logistics teams can match handling gear and pallet configurations to these specifications.
#@@#Delivery Details#@#
• Please ensure to handle the product with utmost care.
• Check if the product you have received has all the essential parts and accessories.
• Make sure to examine the product for damage before signing the delivery receipt.
• Contact customer service for delivery concerns.
• Delivery times may vary based on location.#@@#deliverynotes#@#NA#@@#Maintenance Guide#@#To maintain the 322-60009-00 evaporator coil, inspect fins and tubes monthly, removing debris with a soft brush to preserve airflow. Vacuum the coil surface with a low-suction nozzle, apply approved cleaner, rinse thoroughly, and dry fully before use. Tighten loose hardware, ensure clear drain lines, and replace damaged fins. Schedule annual professional inspections to prevent performance loss.
