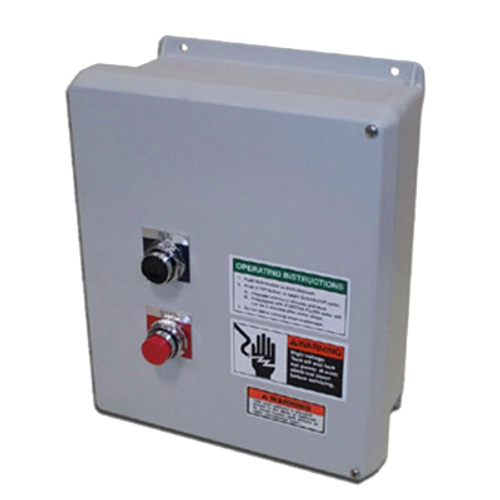

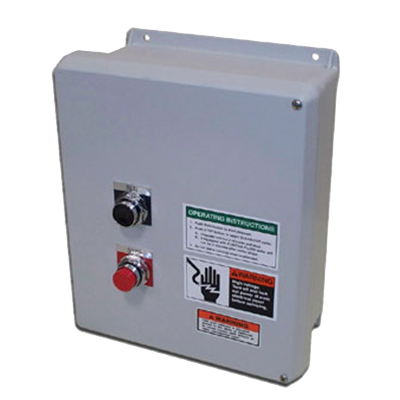

Stop sacrificing uptime for convenience. This control panel delivers engineered motor protection and automated reversal to keep commercial disposers running through the busiest service periods. Designed for 10 HP, three-phase disposers on 440-480v power, the unit combines robust controls with a watertight enclosure to protect electrical systems in harsh kitchen environments.
LongDescription#@#NA#@@#Cleaning Instructions#@#Unplug and lock out power to the RAC1-10H before you start. Remove cover and wipe interior components with a damp cloth and mild detergent; avoid spraying cleaners directly on controls. Clean fan and vents to remove grease and dust; inspect NEMA 4X fiberglass housing for cracks. Check indicator lights and pushbuttons for proper operation. Tighten loose terminals and verify automatic reset overload relays. Reassemble, restore power, and test disposer function to ensure safe operation.#@@#Additional Info#@#Master Disposers RAC1-10H control panel offers auto-reversing magnetic controls for 10 HP disposers at 440–480v, 60 Hz, 3 Ph, with automatic reset overload relays, indicator lights, start/stop pushbuttons, NEMA 4X enclosure, and cULus certification.#@@#General Info#@#Description #@#
Stop sacrificing uptime for convenience. This control panel delivers engineered motor protection and automated reversal to keep commercial disposers running through the busiest service periods. Designed for 10 HP, three-phase disposers on 440-480v power, the unit combines robust controls with a watertight enclosure to protect electrical systems in harsh kitchen environments.
#@@# Auto-Reversing Controls#@#
The control logic actively reverses motor rotation to clear jams, reducing manual intervention and downtime. Technicians benefit from simplified troubleshooting because the sequence prevents frequent motor stalls and preserves disposal throughput.
#@@# Motor Protection#@#
Built-in automatic reset overload relays monitor current and interrupt operation on sustained overload conditions to prevent motor damage. Operators extend equipment life and avoid sudden failures because the relays resume normal service after fault conditions clear.
#@@# Operator Interface#@#
Front-mounted start and stop pushbuttons and indicator lights provide clear status at the control point for immediate operator response. Staff perform safe start-up and stop procedures and diagnose basic faults without opening the enclosure.
#@@# Enclosure Durability#@#
NEMA 4X fiberglass reinforced polyester housing resists water, dust, and corrosion in wet kitchen and waste-handling areas. Maintenance crews gain long-term reliability because the enclosure reduces ingress-related failures and supports regular washdown protocols.
#@@# Electrical Compatibility#@#
Configured for 480v, 60 Hz, three-phase supply and rated for 10 HP motors, the panel matches common commercial kitchen power specifications. Installers streamline integration since the unit aligns with standard disposal motor requirements and electrical layouts.
#@@# Safety Certification#@#
cULus certification verifies compliance with recognized safety standards for commercial electrical equipment.
#@@#Delivery Details#@#
• Please ensure to handle the product with utmost care.
• Check if the product you have received has all the essential parts and accessories.
• Make sure to examine the product for damage before signing the delivery receipt.
• Contact customer service for delivery concerns.
• Delivery times may vary based on location.#@@#deliverynotes#@#NA#@@#Maintenance Guide#@#Inspect the RAC1-10H control panel monthly for corrosion and moisture intrusion in the NEMA 4X fiberglass housing. Tighten terminal connections and verify 480v, 3 Ph supply with a calibrated meter. Test auto-reversing magnetic controls under load and confirm automatic reset overload relays operate by inducing a controlled trip. Clean indicator lenses and pushbuttons with a damp cloth; do not use solvents. Document service actions and replace damaged seals immediately.
