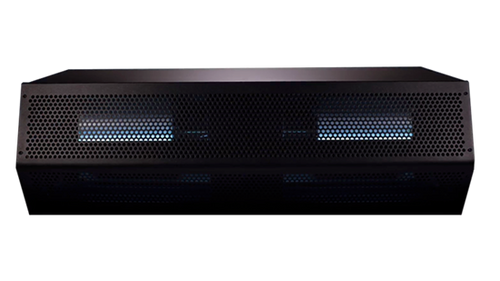

Engineered to control airflow at entries where hygiene and energy efficiency are essential, this air curtain provides targeted protection for 36" openings while integrating UVC sanitation and reliable electrical performance. Facility managers and hospitality operators benefit from consistent coverage with a galvanized cabinet finished in obsidian black, ensuring durability in high-traffic areas. The unit operates on 115 volts single-phase power and mounts to openings up to 12 feet high, effectively maintaining conditioned zones and minimizing infiltration.
LongDescription#@#NA#@@#Cleaning Instructions#@#Wipe high-touch zones (menu covers, shakers, chair backs, door handles) with EPA-registered disinfectant; follow contact time on label. Remove crumbs and spills from booth crevices and under shelves with a vacuum or damp mop to deter pests. Clean painted steel and powder coat surfaces with mild detergent, rinse, dry to prevent corrosion. Sanitize non-food-contact surfaces frequently to meet health codes and prevent cross-contamination between front and back of house.#@@#Additional Info#@#Mars Air Systems STD236-1UA-OB-UVP is a 36" unheated air curtain with UVC, magnetic switch, and 24v control in a black powder coat cabinet. It runs on 115 volts, 60 Hz, with a 1/2 HP motor, 5.1 amps, 500 watts, and supports openings up to 12 Ft.#@@#General Info#@#Description #@#
Engineered to control airflow at entries where hygiene and energy efficiency are essential, this air curtain provides targeted protection for 36" openings while integrating UVC sanitation and reliable electrical performance. Facility managers and hospitality operators benefit from consistent coverage with a galvanized cabinet finished in obsidian black, ensuring durability in high-traffic areas. The unit operates on 115 volts single-phase power and mounts to openings up to 12 feet high, effectively maintaining conditioned zones and minimizing infiltration.
#@@# Motor Power#@#
A 1/2 HP motor generates concentrated airflow across the doorway, limiting outside air ingress and maintaining indoor temperature stability. The single motor design simplifies maintenance while producing adequate volume for most commercial entryways.
#@@# Electrical Specification#@#
The unit operates at 115 volts, 60 hertz, and draws 5.1 amps, resulting in a 500-watt electrical demand suitable for standard commercial circuits. The included cord and plug allow for direct connection without complex wiring, streamlining installation.
#@@# UVC Sanitation#@#
Integrated UVC modules provide germicidal irradiation throughout the airflow stream, effectively reducing airborne microbial load at the threshold. Facility staff can access sanitation benefits without needing separate sterilization equipment, supporting infection control protocols.
#@@# Cabinet Construction#@#
Constructed from galvanized steel with an obsidian black powder coat, this air curtain resists corrosion and endures frequent cleaning cycles typical in food service and healthcare environments. The rigid housing ensures reliable alignment and long-term structural stability.
#@@# Control Interface#@#
The assembly features a magnetic switch and 24v control for coordinated operation with door activity, allowing the curtain to activate only when necessary to conserve energy.
#@@#Delivery Details#@#
• Please ensure to handle the product with utmost care.
• Check if the product you have received has all the essential parts and accessories.
• Make sure to examine the product for damage before signing the delivery receipt.
• Contact customer service for delivery concerns.
• Delivery times may vary based on location.#@@#deliverynotes#@#NA#@@#Maintenance Guide#@#Maintain the Mars Air Systems STD236-1UA-OB-UVP by disconnecting power before service. Inspect and clean intake and discharge grilles monthly to prevent airflow restriction. Vacuum motor housing and remove debris from fan blades every three months; lubricate motor per manufacturer guidelines if applicable. Verify magnetic switch and 24v control operation quarterly. Check mounting fasteners and level alignment semiannually. Replace damaged seals or coils promptly.
