Built for continuous traffic and precise air management, this industrial air door balances energy control with reliable operation in high-use entries. Designed for 72-inch openings and compatible with doors up to 83 inches wide, the unit employs two motors to deliver consistent airflow while maintaining interior climate separation and reducing infiltration. Commercial operators will appreciate the powder-coated aluminum cabinet, which resists wear and cleans easily for a long service life.

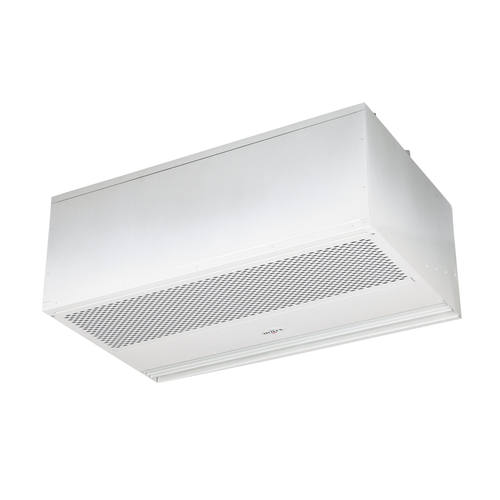

LongDescription#@#NA#@@#Cleaning Instructions#@#Wipe the air door exterior with a soft cloth and mild detergent; rinse and dry to prevent residue. Clean high-touch zones—cabinet edges, mounting brackets, and nearby handles—daily with EPA-registered disinfectant to prevent transfer of Norovirus and cold viruses. Inspect fans and motor housings monthly; vacuum debris and remove accumulated grease to deter pests. Document cleaning and keep records for CSA and health inspections to demonstrate compliance and protect customers and staff.#@@#Additional Info#@#Mars Air Systems PH1072-2UD-PW Phantom 10 air door provides airflow for 72" openings with an aluminum cabinet and pearl white finish, two 1/2 HP motors at 208-230v/60Hz/1-Ph, ETL listed, 105 pounds, unheated for commercial use.#@@#General Info#@#Description #@#
Built for continuous traffic and precise air management, this industrial air door balances energy control with reliable operation in high-use entries. Designed for 72-inch openings and compatible with doors up to 83 inches wide, the unit employs two motors to deliver consistent airflow while maintaining interior climate separation and reducing infiltration. Commercial operators will appreciate the powder-coated aluminum cabinet, which resists wear and cleans easily for a long service life.
#@@# Unheated Operation#@#
This model operates without heat, reducing installation complexity and electrical load while still providing effective air separation for conditioned spaces. Facilities that do not require heated air can rely on the unit to block drafts and pests without added thermal output.
#@@# Dual Motor Design#@#
Two 1/2 HP motors provide balanced airflow across the full 72-inch width, enabling uniform curtain performance and reduced vibration during operation. The distributed horsepower allows the unit to maintain effective air barrier performance for openings up to 8 feet high.
#@@# Voltage Compatibility#@#
Configured for 208-230 volts at 60 Hz and single-phase power, the air door integrates with common commercial electrical systems without special phase conversion. Specifying this voltage minimizes the need for additional electrical infrastructure in most institutional and retail environments.
#@@# Durable Cabinet Finish#@#
Pearl white powder coat applied to an aluminum housing resists corrosion and simplifies cleaning routines in demanding service settings. The finish supports visual consistency with facility interiors while protecting core components from environmental exposure.
#@@# ETL Sanitation Listed#@#
The unit carries ETL recognition, confirming compliance with applicable safety and sanitation standards for commercial installations. Operators can document regulatory conformity and streamline approval for use in schools, hospitals, and food service areas.
#@@#Delivery Details#@#
• Please ensure to handle the product with utmost care.
• Check if the product you have received has all the essential parts and accessories.
• Make sure to examine the product for damage before signing the delivery receipt.
• Contact customer service for delivery concerns.
• Delivery times may vary based on location.#@@#deliverynotes#@#NA#@@#Maintenance Guide#@#Maintain the Mars Air Systems PH1072-2UD-PW by inspecting mounting hardware monthly and tightening fasteners to prevent vibration. Clean intake and discharge grilles weekly with a soft brush and vacuum to preserve airflow. Lubricate motor bearings per manufacturer interval and verify electrical connections at 208-230v for corrosion. Replace filters when pressure drop exceeds specifications. Record service dates and operating hours to support CSA compliance and extend equipment life.
