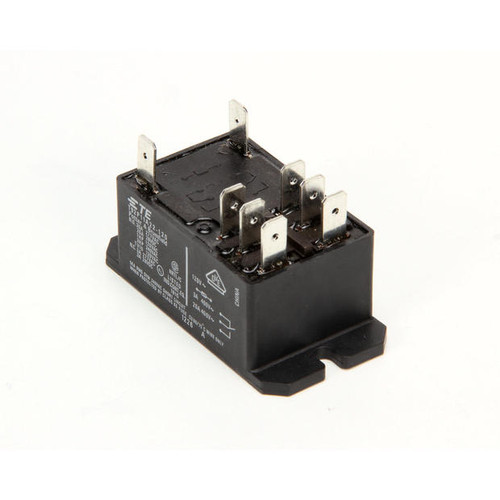

Dependable control for high-use electrical systems begins with a relay designed for consistent switching and rated capacity. This industrial relay accepts a 120VAC coil input and delivers two-pole, 30A switching to manage moderate loads effectively. Technicians will appreciate the compact footprint that facilitates retrofitting into control panels and equipment assemblies.
LongDescription#@#NA#@@#Cleaning Instructions#@#Wipe high-touch zones (menu covers, shakers, chair backs, door handles) with a detergent solution, then apply an EPA-registered sanitizer per label. Clean booth crevices and under shelves with a brush to remove crumbs and grease. Dry surfaces to prevent corrosion. Inspect and tighten hardware monthly. Regular cleaning prevents germ transfer to hands and food, shapes customer perception, avoids health-code violations, deters pests, and preserves furnishings.#@@#Additional Info#@#PartsTown AVTELRLY0307 relay operates at 120VAC, offers two-pole switching at 30A, and fits Struther Dunn #425XBX. Its compact 4.1" by 3.05" size, 0.69 pound weight, and CSA recognition ensure reliable integration.#@@#General Info#@#Description #@#
Dependable control for high-use electrical systems begins with a relay designed for consistent switching and rated capacity. This industrial relay accepts a 120VAC coil input and delivers two-pole, 30A switching to manage moderate loads effectively. Technicians will appreciate the compact footprint that facilitates retrofitting into control panels and equipment assemblies.
#@@# Power Handling#@#
Engineered to switch 30A across two poles, the unit supports resistive and inductive loads common in foodservice equipment. Installers gain clear capacity margins when coordinating with circuit protection and load profiles, ensuring reliable operation.
#@@# Coil Voltage Compatibility#@#
Designed for a 120VAC coil, the relay integrates seamlessly with standard control circuits used in restaurants, cafeterias, hospitals, and institutional kitchens. Electricians can wire directly to existing 120VAC control systems without the need for additional transformers, simplifying installation.
#@@# Compact Footprint#@#
Measuring approximately 4.1 inches by 4.1 inches by 3.05 inches, this relay fits comfortably inside tight enclosures and control boxes. Engineers can reduce panel redesign time and preserve internal routing when replacing larger components, enhancing overall efficiency.
#@@# Robust Construction#@#
Built to handle routine cycling and resist mechanical wear, the relay minimizes service interventions in demanding environments. Maintenance teams will perform fewer replacements, which lowers labor hours and part turnover, contributing to cost savings.
#@@# Mounting Flexibility#@#
The relay accommodates common panel mounting approaches and supports straightforward mechanical fastening for secure installation. Field crews benefit from predictable alignment and stable mounting during vibration and thermal cycling, ensuring long-term reliability.
#@@#Delivery Details#@#
• Please ensure to handle the product with utmost care.
• Check if the product you have received has all the essential parts and accessories.
• Make sure to examine the product for damage before signing the delivery receipt.
• Contact customer service for delivery concerns.
• Delivery times may vary based on location.#@@#deliverynotes#@#NA#@@#Maintenance Guide#@#Inspect the relay regularly for clean contacts and secure terminals; tighten loose connections to prevent arcing. Use a contact cleaner rated for electrical components and remove oxidation with a nonabrasive brush. Verify coil voltage at 120VAC under load and confirm switching action with a multimeter. Replace the relay if contacts show pitting exceeding 0.5 mm or if mechanical operation lags. Document service dates and maintain a parts log for CSA compliance.
