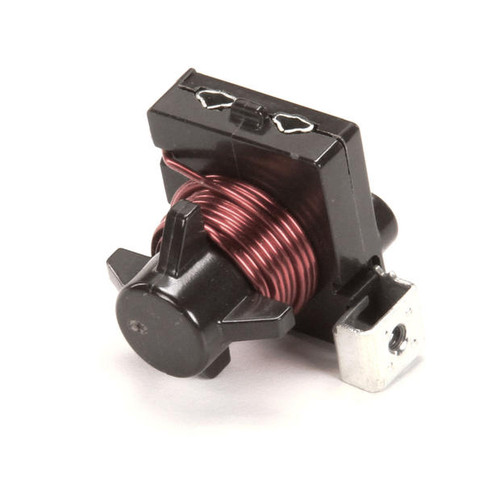

Compact relay module engineered for commercial dispensing and service equipment delivers reliable switching performance in high-use environments. PartsTown designed this interchange relay to match OEM electrical characteristics and mounting dimensions, enabling straightforward field replacement without calibration. Service technicians benefit from consistent actuation timing and rated contact capacity that restore system control functions quickly and predictably.
LongDescription#@#NA#@@#Cleaning Instructions#@#Wipe high-touch zones (menu covers, shakers, chair backs, door handles) with a detergent solution, then disinfect per label contact time. Clean chair frames and booths weekly; vacuum crevices and remove spills immediately to deter pests and prevent staining. Inspect and tighten fasteners monthly. Document cleaning to support CSA compliance and to show customers a maintained, hygienic dining area.#@@#Additional Info#@#PartsTown BEV302-290A relay (302-290A) replaces 8200EMBJ97, providing precise switching for beverage equipment. It fits compact assemblies with 1.65" length, 1.65" width, 1.55" height, and weighs 0.12 pounds, CSA-rated for commercial use.#@@#General Info#@#Description #@#
Compact relay module engineered for commercial dispensing and service equipment delivers reliable switching performance in high-use environments. PartsTown designed this interchange relay to match OEM electrical characteristics and mounting dimensions, enabling straightforward field replacement without calibration. Service technicians benefit from consistent actuation timing and rated contact capacity that restore system control functions quickly and predictably.
#@@# Contact Rating#@#
This relay provides a contact configuration rated for typical control circuits found in dispensing and foodservice machines, supporting consistent current handling for resistive loads. Technicians can rely on the rating to select compatible harnesses and protective devices, minimizing the risk of contact overheating.
#@@# Mounting Footprint#@#
The unit uses a compact footprint with dimensions of approximately 1.65 by 1.55 inches, allowing installation into tight panels and retrofit into existing chassis cutouts. Field crews gain installation flexibility and reduce cabinet modification time when replacing failed modules.
#@@# Electrical Compatibility#@#
Manufactured to match the original relay electrical signature, the device preserves coil voltage and switching thresholds required by the host control board. Engineers achieve predictable system behavior after replacement and avoid nuisance trips related to mismatched actuation parameters.
#@@# Weight and Handling#@#
Weighing approximately 0.12 pounds, the relay remains lightweight for rapid bench testing and transport across service vehicles. Field personnel experience less fatigue during multiunit swaps and can carry larger quantities without exceeding load limits.
#@@# Service Life#@#
Designed for frequent cycling in commercial operations, the relay utilizes durable contacts and a stable coil assembly to maintain switching performance over extended duty cycles.
#@@#Delivery Details#@#
• Please ensure to handle the product with utmost care.
• Check if the product you have received has all the essential parts and accessories.
• Make sure to examine the product for damage before signing the delivery receipt.
• Contact customer service for delivery concerns.
• Delivery times may vary based on location.#@@#deliverynotes#@#NA#@@#Maintenance Guide#@#Inspect the 302-290A relay monthly and record operating cycles to detect drift. Clean contacts with a lint-free cloth and isopropyl alcohol; avoid abrasives. Tighten terminal screws to specified torque values and replace any corroded connectors. Verify coil resistance against manufacturer specifications and bench-test switching under load before installation. Store spare relays in dry, temperature-controlled bins labeled by uid and Manufacturer_Part_Number.
