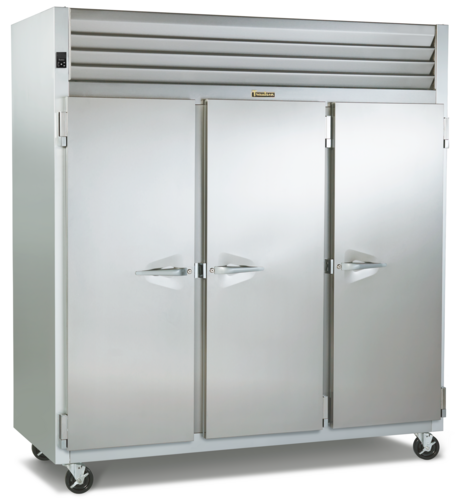

Traulsen G31310 G-Series Reach-In Freezer
Trust only the Traulsen G31310 G-Series Reach-In Freezer for maximum food storage and freezing performance!
The Traulsen G31310 G-Series Reach-In Freezer is a 3-section reach-in freezer. Each section is closed by solid full-height doors with left/right/right hinging. The doors are designed with self-closing cam-lift hinges and stay-open feature at 120 degrees. They are also crafted with horizontally-mounted metal work flow door handles over recess in the door. This is to limit protrusion into aisle ways. Of course, they are equipped with EZ Clean door gaskets for easy maintenance and security. Each door has dimensions of 57-5/8 inches height and 21-1/8 inches width. Meanwhile, the unit has overall dimensions of 83-7/16 inches height, 76-5/16 inches width, and 35 inches depth. It has a weight of 630 pounds.
For a user-friendly and safe operation, the Traulsen G31310 G-Series Reach-In Freezer is built with a water-resistant microprocessor control. It includes a 3-digit LED display, and a temperature scale display capability. For an organized inventory, it is supplied with three (3) epoxy-coated shelves per section. Each shelf has an area of 51.9 square feet and a recommended load limit of 225 pounds. It features a load-sure guard to prevent problems from improper loading of contents. It also comes with 6-inch high locking casters for easy repositioning of the unit. It is also constructed with a full metal construction for a durable built. For the cabinet exterior front, louver assembly, and doors, 20-gauge of stainless steel is used. Meanwhile, the cabinet top, back, and bottom are constructed of heavy gauge galvanized steel. The cabinet sides, interior, and door liners, on the other hand, are made of anodized aluminum.
For an energy efficient operation, the Traulsen G31310 G-Series Reach-In Freezer is built with a self-contained, top mounted refrigeration system using R-448A refrigerant. It maintains a standard operating temperature of 0 to -5 degrees Fahrenheit, and can be adjusted to operate as low as –10 to 90 degrees Fahrenheit. It is insulated with an average of 2-inch thick, high density, non-CFC foamed-in-place polyurethane. Additionally, it has a thermostatic expansion valve device, air cold hermetic compressor, and front facing condenser for easy access and maintenance. To provide more storage space, it is also designed with a high humidity evaporator coil positioned outside the food zone.
The Traulsen G31310 G-Series Reach-In Freezer has a capacity of 69.15 cubic feet. It requires input of 3,500 BTU per hour and 1-horsepower. It is ready for connection to 208-240 or 115 volts, 60 hertz, and 1-phase electrical supply circuit. It comes with a 9-foot cord and a NEMA L14-20P plug. It has four (4) feed wires with a ground.
LongDescription#@#NA#@@#Cleaning Instructions#@#Clean the stainless steel, galvanized steel, and aluminum surfaces with a soft cloth soaked in warm water and mild soap solution. For best results, wipe in the direction of the metal grain. To clean the interior, detach all removable parts and wash them individually. To remove stubborn odor spills, use baking soda and water. Keep the finned condenser clean of lint and dust accumulation as well. For detailed instructions on how to clean the condensing unit, kindly refer to the manufacturer’s manual.#@@#Additional Info#@#The Traulsen G31310 G-Series Reach-In Freezer holds the following industry approvals: cETLus, UL, CSA, and NSF. It is also Energy Star qualified.#@@#General Info#@#Traulsen G31310 G-Series Reach-In Freezer
Trust only the Traulsen G31310 G-Series Reach-In Freezer for maximum food storage and freezing performance!
The Traulsen G31310 G-Series Reach-In Freezer is a 3-section reach-in freezer. Each section is closed by solid full-height doors with left/right/right hinging. The doors are designed with self-closing cam-lift hinges and stay-open feature at 120 degrees. They are also crafted with horizontally-mounted metal work flow door handles over recess in the door. This is to limit protrusion into aisle ways. Of course, they are equipped with EZ Clean door gaskets for easy maintenance and security. Each door has dimensions of 57-5/8 inches height and 21-1/8 inches width. Meanwhile, the unit has overall dimensions of 83-7/16 inches height, 76-5/16 inches width, and 35 inches depth. It has a weight of 630 pounds.
For a user-friendly and safe operation, the Traulsen G31310 G-Series Reach-In Freezer is built with a water-resistant microprocessor control. It includes a 3-digit LED display, and a temperature scale display capability. For an organized inventory, it is supplied with three (3) epoxy-coated shelves per section. Each shelf has an area of 51.9 square feet and a recommended load limit of 225 pounds. It features a load-sure guard to prevent problems from improper loading of contents. It also comes with 6-inch high locking casters for easy repositioning of the unit. It is also constructed with a full metal construction for a durable built. For the cabinet exterior front, louver assembly, and doors, 20-gauge of stainless steel is used. Meanwhile, the cabinet top, back, and bottom are constructed of heavy gauge galvanized steel. The cabinet sides, interior, and door liners, on the other hand, are made of anodized aluminum.
For an energy efficient operation, the Traulsen G31310 G-Series Reach-In Freezer is built with a self-contained, top mounted refrigeration system using R-448A refrigerant. It maintains a standard operating temperature of 0 to -5 degrees Fahrenheit, and can be adjusted to operate as low as –10 to 90 degrees Fahrenheit. It is insulated with an average of 2-inch thick, high density, non-CFC foamed-in-place polyurethane. Additionally, it has a thermostatic expansion valve device, air cold hermetic compressor, and front facing condenser for easy access and maintenance. To provide more storage space, it is also designed with a high humidity evaporator coil positioned outside the food zone.
The Traulsen G31310 G-Series Reach-In Freezer has a capacity of 69.15 cubic feet. It requires input of 3,500 BTU per hour and 1-horsepower. It is ready for connection to 208-240 or 115 volts, 60 hertz, and 1-phase electrical supply circuit. It comes with a 9-foot cord and a NEMA L14-20P plug. It has four (4) feed wires with a ground.#@@#Delivery Details#@#• Upon receiving your Traulsen G31310 G-Series Reach-In Freezer, carefully inspect it for shipping damages. If any damages are found, immediately make a claim about it with the freight carrier and have the product marked as “damaged” on their copy of the freight bill.
• Lift and transport the unit to its location with two or more persons. Use a lift gate if a loading dock is not available.
• Choose a location for your unit away from extreme heat. Also, allow adequate clearances for proper air circulation and opening of the doors. The doors must be able to open at a minimum of 90 degrees to make use of the maximum clear door width. A top clearance of 12 inches is also required for the top mounted refrigeration system.#@@#deliverynotes#@#The Traulsen G31310 G-Series Reach-In Freezer is usually shipped within # business days after receiving cleared payment.#@@#Maintenance Guide#@#To ensure the quality of the Traulsen G31310 G-Series Reach-In Freezer, proper and regular maintenance is of utmost importance. Before proceeding with any cleaning or maintenance procedure, disconnect the electrical power supply. Make a regular schedule for the cleaning of the exterior and interior surfaces, as well as the condenser. Also, replace the hinges and gaskets if necessary.
