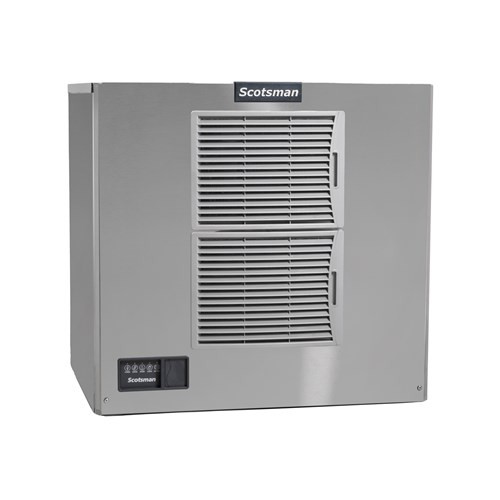

Keeping up with your customers’ demands for fresh-tasting ice is now easy as ever with Scotsman MC1030MA-32 Prodigy Elite Modular Cube Ice Machine. It is equipped with some of the latest advancements in ice production that makes it easy to clean, and cost-efficient. This is made possible by its self-monitoring function, advanced ice level control, and other intuitive technology installed in this unit. The ice machine has the ability to produce up to 1077 pounds of medium cube ice every 24 hours depending on your storage bin’s capacity. Talk about productivity! It requires a connection to a circuit with 16 amps minimum running load and electrical specifications of 208-230 volts, 60 hertz, and a single-phase electrical supply.
LongDescription#@#NA#@@#Cleaning Instructions#@#Unplug the Scotsman MC1030MA-32 Prodigy Elite Modular Cube Ice Machine from the power supply and let it cool down first before you begin the cleaning process. Cleaning this machine involves adding a solution of scale remover and water to the ice machine and continuing to add it as it makes ice. The scale remover must be diluted to the correct ratio. This is followed by sanitizing. The ice machine must be connected to power, water, and drain during this process. The recommended tools include rubber gloves, a small scrub brush & a scale remover. As for the condenser, after removing the front panel, vacuum the surface of the condenser fins, carefully brush off any loose dirt and if grease is embedded you may use coil cleaner to wash it out. After doing any type of cleaning or maintenance, check first the ice machine before plugging it back into the power source, and test if the unit is operating properly. Read your copy of the Owner’s Manual for more detailed cleaning instructions.#@@#Additional Info#@#The Scotsman MC1030MA-32 Prodigy Elite Modular Cube Ice Machine has NSF, cULus, and CE certifications. It is engineered and assembled in the USA. Modular storage bins compatible with this unit are sold separately.#@@#General Info#@#Scotsman MC1030MA-32 Prodigy Elite Modular Cube Ice Machine Description #@# Keeping up with your customers’ demands for fresh-tasting ice is now easy as ever with Scotsman MC1030MA-32 Prodigy Elite Modular Cube Ice Machine. It is equipped with some of the latest advancements in ice production that makes it easy to clean, and cost-efficient. This is made possible by its self-monitoring function, advanced ice level control, and other intuitive technology installed in this unit. The ice machine has the ability to produce up to 1077 pounds of medium cube ice every 24 hours depending on your storage bin’s capacity. Talk about productivity! It requires a connection to a circuit with 16 amps minimum running load and electrical specifications of 208-230 volts, 60 hertz, and a single-phase electrical supply. #@@# Medium-sized Cube Ice Production#@# This ice maker produces up to 1077 pounds of medium-sized cube ice with dimensions of 7/8-inch on all sides. This is based on a one-day volume production at an air temperature of 70 degrees Fahrenheit and water temperature of 50 degrees Fahrenheit. #@@# Air Cooled Self-Contained Condensing Unit#@# For better efficiency at a lower cost, the ice machine is built with an air-cooled, self-contained condenser unit with a front-located air filter. It uses R-404A for refrigerant which generates 16,200 BTU per hour. #@@# Harvest Assist Function#@# As part of the Prodigy Elite series, this ice maker prides itself on being the world’s only self-monitoring cube ice maker. It features the patented Harvest Assist function, which moves the cube ice straight to the storage bin after production. #@@# Easy to Clean and Maintain#@# It has a self-aligning front panel to access key components for easy cleaning. Antimicrobial protection helps guard internal surfaces between cleanings. A one-touch cleaning function with patented WaterSense purge control reduces scale buildup. #@@# Smart-Board Advanced Feature#@# A Smart-Board™ advanced feature module is available for additional diagnostic capabilities. #@@# Optional Vari-Smart Ice Level Control#@# An optional Vari-Smart ice level control may be installed to allow you to customize ice levels. #@@# AutoAlert Indicator Lights#@# Intuitive technology such as AutoAlert indicator lights provides better visibility. #@@# Durable Construction#@# This ice machine features an all-stainless steel exterior for a durable and presentable unit. #@@# Small Footprint#@# This 235-pound ice machine unit’s operational footprint is among the industry’s smallest. It has an overall width of 30 inches, a depth of 24 inches, and a height of 29 inches. #@@# Industry-exclusive QR Code#@# A unit-specific QR code allows you to access the service manuals, cleaning guides, and warranty history if you need information related to the ice machine or want to check on its warranty status whenever and wherever you want.#@@#Delivery Details#@#• The Scotsman MC1030MA-32 Prodigy Elite Modular Cube Ice Machine should be handled by two or more persons.
• The device must be leveled front to back, side to side once installed.
• Go over the equipment you received if the package is complete and for signs of damage before signing the delivery receipt.
• All of the ice machine’s parts are very susceptible to damage. Thus, be extra cautious when handling it.
• Its refrigerant has highly flammable tubing. Please ensure to read the manual provided by Scotsman and strictly follow the proper operating and installation procedures.
• Check over the electrical specification of this ice maker before connecting to a power source.#@@#deliverynotes#@#Culinary Depot usually ships the Scotsman MC1030MA-32 Prodigy Elite Modular Cube Ice Machine within # business days upon confirming cleared payment.#@@#Maintenance Guide#@#Every commercial equipment demands regular cleaning for you to keep performing in optimal performance and give you trouble-free operation. Thus, you need to give your Scotsman MC1030MA-32 Prodigy Elite Modular Cube Ice Machine the proper care it needs. Generally, there are two main parts that you need to clean and maintain; the water system and the condenser. Cleaning the water system is recommended at least twice a year. On the other hand, the condenser unit requires constant cleaning as well. You need to check for grease or dirt buildup. Just make sure that you only use Scotsman-approved cleaner. You also need to check all water fittings and lines for possible leaks. Lastly, the exterior parts should be checked and cleaned as well because they are prone to dust and dirt accumulations. The Owner’s Manual will give you more detailed maintenance procedures.
